Overhead Patient Lifts

Conveniently mobilize patients earlier with a variety of applications in-bed, up-from-bed and out-of-bed.



When it’s time to get your patients moving, Hillrom’s portfolio of overhead lifts gives you the convenience and safety you need. As part of a safe patient handling & mobility program, our overhead lifts can help you mobilize patients earlier and often—and help mitigate complications from immobility.



With consistent use, they can help you improve patient outcomes—including fewer falls and shorter lengths of stay in your hospital/ICU. Choose from our portfolio of Likorall®, LikoGuard® and Multirall® motor options, which offer a variety of safe working loads and features. We can help you find the right solution for your unique patient mobility needs, care protocols and facility/room requirements.

A LikoGuard XL overhead patient lift. The rail-based unit is white, with a corded, handheld control, and a curved slingbar.

LikoGuard L & XL Patient Lifts

  • With safe working loads of 600-800 lbs (272-363 kg), the LikoGuard lift helps you transfer and move patients of varying weights—including bariatric patients.
  • The strong, consistent lift motor’s high safe working load can help move patients more safely—which may lead to fewer injuries among healthcare workers.

Likorall 250 Patient Lift

  • The Likorall 250 overhead lift system is the most powerful lift motor in the Likorall portfolio, managing loads of up to 550 lbs. (250 kg) while offering advanced functionality.
  • In-Rail Charging (IRC) ensures the lift is prepared each time you intend to mobilize a patient.

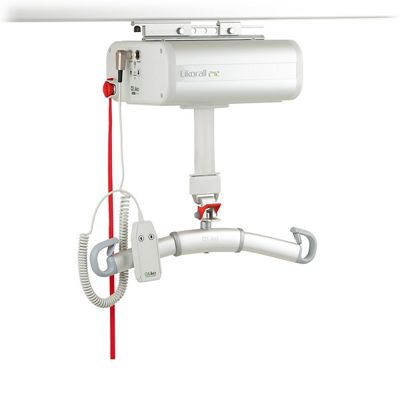

Likorall 242 Patient Lift

  • The Likorall 242 overhead lift system easily meets the capacity need for most patient populations around the world, with a safe working load of up to 440 lbs. (242 kg).
  • Charge the motor via hand control and docking station or parking panel.

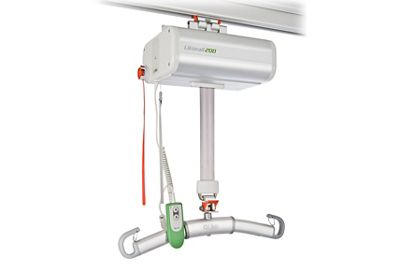

Likorall 200 Patient Lift

  • The Likorall 200 overhead lift system is a cost-effective motor that fulfills everyday needs of safe and functional lifting.
  • Used primarily in long-term care and residential facilities, this lift offers the same solid performance delivered by other Likorall models.

Multirall 200 Patient Lift

  • The Multirall 200 overhead lift system is a portable overhead lift that can also be used for room-to-room patient transfers—with just one lift motor.
  • The motor can be easily attached to or removed from the ceiling rail for convenient transport between rooms with minimal effort and no ladder required.

UltraTwin Patient Lift System

  • The UltraTwin overhead lift system provides a comfortable and easily adjustable way to transfer and care for bariatric patients while helping to protect caregivers from injury.
  • The ceiling-mounted system consists of two Likorall motors that provide a combined lifting capacity.
  • The system has the ability to adjust the patient’s position, offering tilt for comfort and space for girth during and after the transfer.

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

LikoGuard XL
Safe Working Load 800 lbs / 363 kg
Lift Motor Weight 31 lbs / 14 kg
Lift Speed 1.6-2.3" per sec @ 220 lbs + / 5-6 cm per sec @ 100 kg +
Lifting Interval 90.6" / 2,300 mm
Motor Height 7" / 178 mm
Battery Type 25.2 V / 4.2 Ah
Power Source Wall Charger or In-Rail Charging
LikoGuard L
Safe Working Load 600 lbs / 272 kg
Lift Motor Weight 31 lbs / 14 kg
Lift Speed 1.6-2.3" per sec @ 220 lbs + / 5-6 cm per sec @ 100 kg +
Lifting Interval 90.6" / 2,300 mm
Motor Height 7" / 178 mm
Battery Type 25.2 V / 4.2 Ah
Power Source Wall Charger or In-Rail Charging
Likorall 250
Safe Working Load 550 lbs / 250 kg
Lift Motor Weight 27.7 lbs / 12.6 kg
Lift Speed 2" per sec @ 220 lbs + / 5 cm per sec @ 100 kg +
Lifting Interval 80.7" / 2,050 mm
Motor Height 6.5" / 165 mm
Battery Type 2 x 12 V / 2.4-2.6 Ah
Power Source Wall Charger or In-Rail Charging
Likorall 242
Safe Working Load 440 lbs / 200 kg
Lift Motor Weight 28.6 lbs / 13 kg
Lift Speed 2" per sec @ 220 lbs + / 5 cm per sec @ 100 kg +
Lifting Interval 80.7" / 2,050 mm
Motor Height 6.5" / 165 mm
Battery Type 2 x 12 V / 2.4-2.6 Ah
Power Source Wall Charger
Likorall 200
Safe Working Load 440 lbs / 200 kg
Lift Motor Weight 27.5 lbs / 12.5 kg
Lift Speed 2" per sec @ 220 lbs + / 5 cm per sec @ 100 kg +
Lifting Interval 80.7" / 2,050 mm
Motor Height 6.5" / 165 mm
Battery Type 2 x 12 V / 2.4-2.6 Ah
Power Source Wall Charger
Multirall 200
Safe Working Load 440 lbs / 200 kg
Lift Motor Weight 19 lbs / 8.7 kg
Lift Speed 2.3" per sec @ 220 lbs + / 6 cm per sec @ 100 kgs +
Lifting Interval 63" / 1,600 mm
Motor Height 9" / 230 mm
Battery Type 2 x 12 V / 2.4-2.6 Ah
Power Source Wall Charger



Education & Documentation

Get in the know to get the most value out of your solution.


play_circle_outline

Operating the Likorall 200 Overhead Lift

Operating the Likorall 200 Overhead Lift

Frequently Asked Questions
