Yellofins Apex™ Advanced Stirrups Accessories Package for Surgical Tables
Support patients in lithotomy positioning while achieving enhanced surgical site access.
These table accessories are designed to help surgical care teams facilitate the safe movements of abduction, raising and lowering patients during lithotomy positioning in urology, gynecology and robot-assisted procedures. The Yellofins Apex Stirrups accommodate surgeon preferences for managing patient legs during surgical procedures. These package components also enhance surgical site access, improve infection control, and help optimize overall surgical efficiency.
TrenGuard® is a registered trademark of Robert Dan Allen.
Yellofins Apex™ Stirrups
These stirrups allow for easy adjustment of abduction and lithotomy while maintaining the sterile field. An automatic position-locking technology safely positions the patient while protecting both the patient and the surgical team. The dual-rod design prevents medial leg drop and the single-point boot release handle allows personnel to easily adjust leg position with a single-point latch. Easy-to-clean welded pads and removable silicone straps control potential infection.
- Patient Weight Capacity: 500 lb (226 kg)
- Lithotomy Range: +90° to -35°
- Abduction Range: +25° to -9°
- Maximum Medial/Lateral shift: ±20°
- Product Weight: 18.5 lb

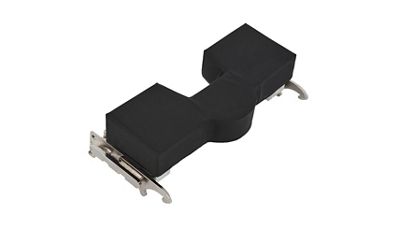

Pelvic Section Extension
For a radiolucent extension of 12” (305 mm), attach the Pelvic Section extension to the Hillrom hook/coupling point system by connecting it to the Large (L) hook coupler on the table. The Medium (M) hook is used for fastening to the opposite end of the pelvic attachment.
- Weight Capacity: 496 lb (250 kg) when complying with the conditions that apply for the operating table
- Dimensions (LxWxH): 12.05" x 23.66" x 3.94" (306 mm x 601 mm x 100 mm)
Easy Lock® Blade Clamp
Attach clamps anywhere on the operating table siderail via the quick and easy pull-to-release lever. Accepts all 1" x 1/4" (25 mm x 6 mm) accessories with flat mounting blades.

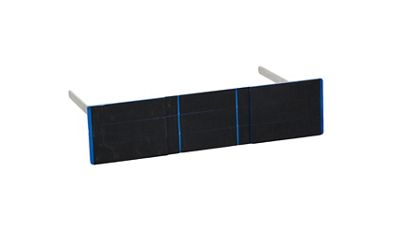

TrenGuard®Patient Support Frame
The TrenGuard Patient Support Frame secures directly to the table accessory rail with the Easy Lock Blade Clamps. Compatible with all TrenGuard Packs.

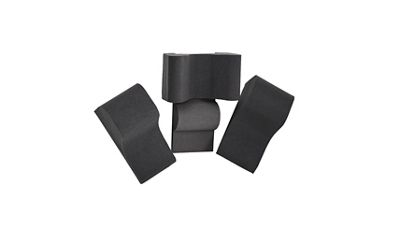

TrenGuard® 450 Procedure Pack
1 Case of 12 #111404
For patients up to 450 lb (204 kg) in 40° of Trendelenburg, this single-use Procedure Pack is an accessory to the TrenGuard Patient Support Frame (111902) and includes (1) Head Stabilizer, (1) Cervical Neck Pad and (2) Lateral Stabilizing Pillows.

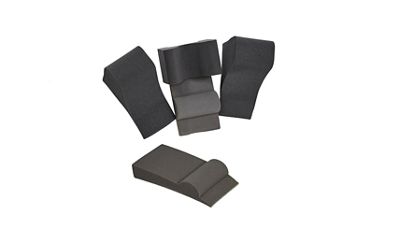

TrenGuard® 600 Procedure Pack
2 Each #111903
For high BMI patients up to 550 lb (249 kg) in 40° of Trendelenburg, this single-use procedure pack is an accessory to the TrenGuard Patient Support Frame (111902) and includes (1) Head Stabilizer, (1) Cervical Neck Pad and (2) Lateral Stabilizing Pillows
TrenGuard® 450 Demo Case
Keep the TrendGuard Patient Support Frame (111902) protected in this convenient, hard-sided demo case.
