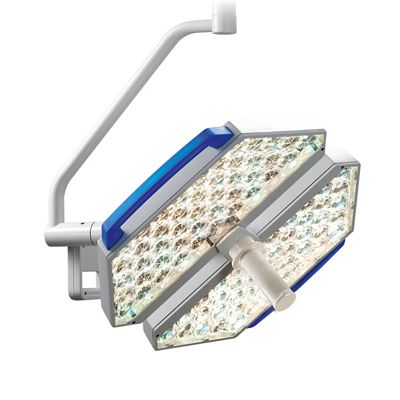

Features
- Adjustable color temperature gives optimal contrast and ideal lighting of all tissue areas.
- Innovative optical design and adjustable light field diameter give continuous illumination.
- Automatic focus feature uses an integrated motion detector to keep illumination consistent if the surgical light is moved.
- Lightweight head and center-mounted yoke make light easy to maneuver.
- Optional Surgical Camera and monitor holder solutions bring full HD quality to your OR.
- Powerful and durable LEDs produce minimal heat, enabling a longer life cycle.
- Non-sterile outer handles with integrated LEDs give better visibility in darkened environments.
- Environmentally friendly design minimizes use of hazardous substances, uses recyclable aluminum and ships in recyclable packaging.
Adjustable
Adjust color temperature & light field diameter for ideal lighting.
Adaptive
Automatic focus & motion detector keep surgical site optimally lit.
Efficient
Powerful LEDs produce minimal heat for a longer life cycle.
Communicative
Optionally add Surgical Camera & monitor holder solutions.
Technical Specifications
Dig deeper into product attributes to see how we can fit your requirements.
| Features | iLED 7 | TL5500 | TL5510 | TL5520 | TL5300 | TL5310 | TL5320 | |
|---|---|---|---|---|---|---|---|---|
| Illumination Level Lux | 160,000 (over full working distance) |
160,000 (at 1.0m) 100,000 (at 1.2m) |
160,000 (at 1.0m) 160,000 (at 1.2m, with camera installed) |
160,000 (at 1.0m) 160,000 (at 1.2m) |
140,000 (at 1.0m) 90,000 (at 1.2m) |
140,000 (at 1.0m) 140,000 (at 1.2m, with camera installed) |
140,000 (at 1.0m) 140,000 (at 1.2m) |
|
| Dimmable | 100 - 30%; < 10% endo | 100 -50%; < 10% endo | 100 -50%; < 10% endo | 100 -50%; < 10% endo | 100 -50%; < 10% endo | 100 -50%; < 10% endo | 100 -50%; < 10% endo | |
| Working Distance | 0.8m to 1.3m | 0.8m to 1.2m | 0.8m to 1.2m | 0.8m to 1.2m | 0.8m to 1.2m | 0.8m to 1.2m | 0.8m to 1.2m | |
| Pattern Size d10 | 6.3", 7.9" and 9.8" | 6.7"; 9.5" | 6.7"; 9.5" | 6.7"; 9.5" |
6.7"; 9.5" | 6.7"; 9.5" |
6.7"; 9.5" | |
| Pattern Size | 6.3" to 11.8" | 6.3" to 11.8" | 6.3" to 11.8" | 6.3" to 11.8" | 6.3" to 11.8" | 6.3" to 11.8" | 6.3" to 11.8" | |
| Depth of illumination at 20% | 76" (with ALC+) | up to 37.4" | up to 37.4" | up to 37.4" | up to 37.8" | up to 37.8" | up to 37.8" | |
| Depth of illumination at 60% | 43" (with ALC+) | 23.6" | 23.6" | 23.6" | 20.1" | 20.1" | 20.1" | |
| Color temperature (Kelvin) | 3,500, 4,000, 4,500, and 5,000 | 3,500, 4,000, 4,500, and 5,000 | 3,500, 4,000, 4,500, and 5,000 |
3,500, 4,000, 4,500, and 5,000 | 3,500, 4,000, 4,500, and 5,000 | 3,500, 4,000, 4,500, and 5,000 |
3,500, 4,000, 4,500, and 5,000 | |
| Color rendering index | max 97 | max 96 | max 96 | max 96 | max 96 | max 96 | max 96 | |
| Average service life of the LEDs | > 60,000 | > 60,000 | > 60,000 | > 60,000 | > 60,000 | > 60,000 | > 60,000 | |
| Adaption Light Control (ALC) | X | X | X | X | X | X | X | |
| Adaption Light Control Plus (ALC +) | X | X (with camera installed) |
X | X (with camera installed) |
X | |||
| Sterile Light Control | X | X | X | |||||
| Camera Preparation | X | X | X | |||||
| Shadow Control | active | passive | passive | passive | passive | passive | passive |
