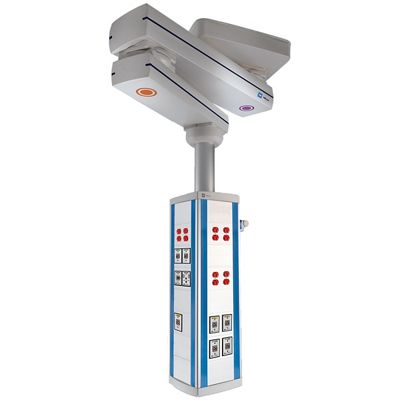

Hillrom FCS 700 Vertical Equipment Boom

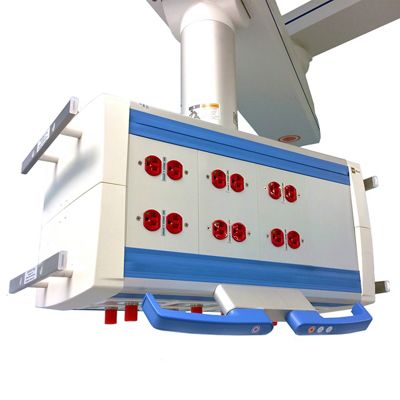

Hillrom FCS 700 Horizontal Equipment Boom

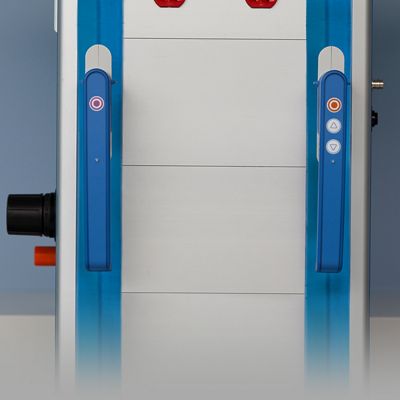

FCS Boom Handles

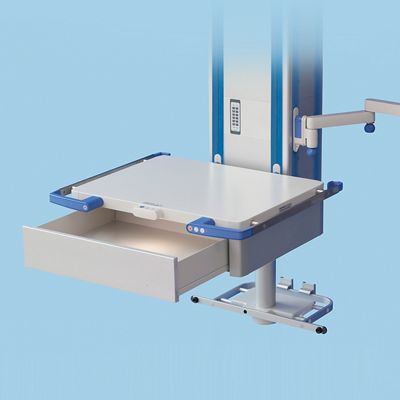

FCS Boom Drawer/Shelf
zoom_out_map
Hillrom FCS 700 Vertical Equipment Boom Hillrom FCS 700 Horizontal Equipment Boom FCS Boom Handles FCS Boom Drawer/Shelf
Hillrom FCS 700 Vertical Equipment Boom Hillrom FCS 700 Horizontal Equipment Boom FCS Boom Handles FCS Boom Drawer/Shelf

FCS 700 Boom

Break free to move forward.



Whether in the Intensive Care Unit (ICU) or the Operating Room (OR), adaptability is essential – because everything can change in an instant. Care teams need to flex and shift on a moment’s notice. Yet too often, their choices are limited to complex and costly infrastructure considerations. Break free and adapt your equipment to deliver the care your patients need today with the FCS 700 Boom.

Read full description

Overview

The FCS 700 Boom is designed for today’s evolving ICUs and ORs to be both adaptable for today and ready for tomorrow.

Choose the setup you need today and reconfigure as your needs change. The ceiling-mounted FCS boom’s modular design lets you interchange all low-voltage, electrical and medical gas modules any time – even after installation. So it can adapt as often as you do.

  • Quiet Electromagnetic Brake System – our color-coded eBrake system locks quietly into place and does not require a secondary gas line
  • Cost-Saving Adapter Plate – install the FCS 700 boom’s support/dual arm into your existing ceiling infrastructure, saving you the typical downtime and construction costs of changing equipment providers.
  • The Right Components for Any Application – Attach control handles, IV poles, equipment rales, shelves, drawers and more to the MPC rail. Attach at any height and on every side of the boom, no tools required.
  • Freely Configurable Service Head – Remove services from the head wall for greater patient access. The design makes it easy to arrange and reposition service modules even after installation.

Modular

The electrical or gas modules you want, when you want them.

Flexible

Attach components and accessories to all 4 sides of the boom.

Convertible

Replace booms without major infrastructure costs or downtime.

Mobile CEC

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

  FCS 700
Medium Load		 FCS 700
Motorized
Medium Load		 FCS 700
Heavy Load		 FCS 700
Motorized
Heavy Load		 FCS 700
Fixed
Arm Lengths
 47" (1200 mm),
58" (1465 mm),
68" (1730 mm),
79" (1995 mm),
89" (2260 mm),
96" (2430 mm),
102" (2600 mm)
 36" (1600 mm),
73" (1865 mm),
84" (2130 mm),
91" (2300 mm)
 47" (1200 mm),
58" (1465 mm),
68" (1730 mm),
79" (1995 mm),
89" (2260 mm),
96" (2430 mm),
102" (2600 mm)
 36" (1600 mm),
73" (1865 mm),
84" (2130 mm),
91" (2300 mm)
 Down tube length:
50 mm increments
Support Head (size)
 8.7" x 12.1" (220 mm x 310 mm)
12.1" x 12.1" (310 mm x 310 mm)
Horizontal can only be: 12.1" x 12.1" (310mm x 310mm)
Support Head Lengths - Vertical
 20" (500 mm),
30" (750 mm),
40" (1000 mm),
50" (1250 mm),
60" (1500 mm)
 20" (500 mm),
30" (750 mm),
40" (1000 mm),
50" (1250 mm)
 20" (500 mm),
30" (750 mm),
40" (1000 mm),
50" (1250 mm),
60" (1500 mm)
 20" (500 mm),
30" (750 mm),
40" (1000 mm),
50" (1250 mm),
 20" (500 mm),
30" (750 mm),
40" (1000 mm),
50" (1250 mm),
60" (1500 mm)
Support Head Lengths - Horizontal
 20" (500 mm),
30" (750 mm)
Rotation
 330°
Vertical Articulation
 -
 27.5" (700 mm) max.
 -
 27.5" (700 mm) max.
 -
Braking System
 Electro-magnetic
Electro-pneumatic
Pneumatic
Friction
 Friction
Electrical
 24 max. (Duplex)
 Circuits: max. 4
Duplex: max. 12
Gases
 15 max.
 10 max.
Shelves
 4 Standard (8 max.)
Shelf sizes
 17" (430 mm), 21" (530 mm), 25" (630 mm), and 29" (730 mm)
Force (mounting)
 2,067 lbf (9,200 N)
Moment (mounting)
 9,220 ft-lb (12,500 Nm)
Max. Load
 1200 mm:
597 lb (271 kg)
2600 mm:
267 lb (121 kg)
 265 lb (120 kg)
 1200 mm:
597 lb (271 kg)
2600 mm:
267 lb (121 kg)
 265 lb (120 kg)
 176 lb (80 kg)
