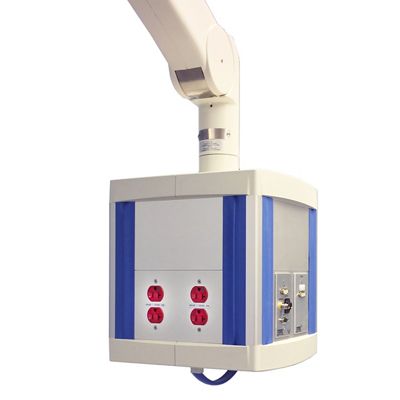

FCS 300 Electro Cube

Powering Your Operating Room



The FCS 300 Electro Cube is used in the operating room for connecting additional equipment for power and low voltage needs. Primarily used in Hybrid ORs, specialty ORs and ambulatory surgical centers (ASCs). Standard configuration includes 2 electrical outlets and 2 low voltage preparations.

Read full description

FCS 300 Electro Cube: Ceiling-Mounted Support System

Let’s Power Up Your Operating Room

Your OR and surgical team are scrubbed in and ready to give patients the best care. Providing power to the operating room and surgical center should be the least of their worries.

Introducing The FCS 300 Electro Cube - designed for today's dynamic hybrid ORs and specialty surgical centers and offering adaptable solutions for current and future needs.

  • Spring Arm Actuation: Allows for easy up and down movement.

  • Lockable Pre-set Positions: Enables stability during operations.

  • 1x Circuit: Supports essential power needs.

Up to 4x Data Outlets: Provides ample connectivity for various data requirements.

Flexible Placement

The FCS 300 Electro Cube can be positioned anywhere within the action radius of the VidiaPort support arm system, offering enhanced control over the operating room layout.

Mounting and Load Capacity

The designated mounting devices support safety and stability needs. The VidiaPort support arm system's load capacity varies based on the maximum additional load, and mounting devices reduce the remaining load by their own weight, specified on the devices. Each mounting device has a clearly indicated maximum load capacity.





For safe and proper use of product mentioned herein, please refer to the Instructions for Use or Operator manual.

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

Parameter Value
Soffit Cover
 16" (400 mm) square - flat
25.2" (640 mm) square, 3.9" - 11.8" (100 mm - 300 mm) deep
Down Tube
 9.8" - 39.4" (250 mm - 1,000 mm)
Horizontal Arm Length
 27.6" - 88.6" (700 mm - 2250 mm)
Articulating Spring Arm Length
 38.6" (980 mm)
Vertical Travel (max)
 45º up / 50º down; intermediate stops at 20º Up/Down
Arm / Support Head Rotation
 320°
Braking System
 Friction
Electrical
 1x circuit
Low Voltage
 Up to 4x data outlets
Cable Routing Area (power and low voltage)
 17.7"2 (450 mm2)
