Armboards

Hillrom's selection of armboards provides safe and easy solutions for prone, lateral, supine and fowlers positions.

Overview

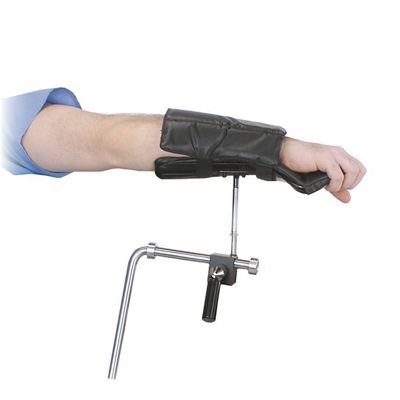

LPS Arm Support, patient seated, #A-90002

LPS Arm Support, #A-90002

Allows for effective positioning of arms to prevent potential patient injury. The malleable hand rest enables surgeon to place patient’s hand in any desired orientation. Wrap-around pad provides protection and stability.

  • Patient Weight Capacity: 500 lbs (227 kg)
  • CE marked
Multi-Task Armboard, #O-ABMT

Multi-Task Armboard, #O-ABMT

Provides arm support for lateral, chair, prone and neuro park bench positions. Lockable ball socket combined with 6" (15 cm) of horizontal travel permits a wide range of positioning flexibility.

  • Patient Weight Capacity: 500 lbs (227 kg)
  • CE marked
Easy Armboard Lift-to-Position, #O-ABSL (US)

Easy Armboard Lift-to-Position, #O-ABSL (US)

Lift the end of the board and rotate to the desired position. The patient’s arm weight locks the board in place when lowered. A spring lever securely locks the armboard to the rail reducing the uncertainty of gravity locks.

  • Patient Weight Capacity: 400 lbs (181 kg).
  • Armboard measures 26" x 5 1⁄2" (66 x 14 cm). Note: Japanese version is 22"x 5 1⁄2" (56 x 14 cm).
  • The pad width measures 6" (15 1⁄4 cm).
  • CE marked
Easy Armboard with Trigger, #O-ABSLT (US)

Easy Armboard with Trigger, #O-ABSLT (US)

With the trigger design, simply pull the radiolucent release mechanism for full articulation and release it to lock. A spring lever accessible from both sides securely locks the armboard to the rail and reduces the uncertainty of gravity locks.

  • Patient Weight Capacity: 400 lbs (181 kg)
  • Armboard measures 26" x 5 1⁄2" (66 x 14 cm). Note: Japanese version is 22"x 5 1⁄2" (56 x 14 cm).
  • The pad width measures 6" (15 1⁄4 cm)
  • CE marked
Easy Extra-Wide Armboard, #O-ABSLW

Easy Extra-Wide Armboard, #O-ABSLW

The Extra-Wide Armboard features a 11"x 24" (28 cm x 61 cm) surface. Attaches easily and securely to the table rail using our spring lever design. Triggerless design allows you to simply lift the end of the board and rotate to the desired position. When lowered, the patient’s arm weight causes the board to lock securely.

  • Patient Weight Capacity: 400 lbs (181 kg)
  • Dimensions: 11"x 24" (28 cm x 61 cm) surface area
  • Fits US rails only
Multi-Task Armboard Pad, #O-AMA12X1.0S

Multi-Task Armboard Pad, #O-AMA12X1.0S

Multi-Task Armboard Standard 1" (2.5 cm) Armboard Pad.

Clamshell Armboard Pads For Easy Armboard, #O-AMA96X3.0S

Clamshell Armboard Pads For Easy Armboard, #O-AMA96X3.0S, #O-AMA96X2.0S, #O-AMA97X1.0S

Clamshell Armboard Pads for use with Easy Armboard with Trigger and Easy Armboard Lift-to-Position.

  • #O-AMA97X1.0S: 1" (2.5 cm) Pad
  • #O-AMA96X2.0S: 2" (5 cm) Pad
  • #O-AMA96X3.0S: 3" (7.6 cm) Pad
Easy Extra-Wide Armboard Pads, #O-AMA10X1.0S, #O-AMA10X2.0S

Replacement Pad for Easy Extra-Wide Armboard

  • #O-AMA10X1.0S: 1" (2.5 cm) Pad
  • #O-AMA10X2.0S: 2" (5 cm) Pad
