Arm & Hand Tables for Surgical Procedures

Ensure proper patient positioning during general arm and hand procedures.



These arm and hand tables ensure proper positioning of the patient during procedures including carpal tunnel release, basic ligament repair and radiology procedures. The components provide surgeons with improved access to the surgical site and help prevent potential patient injury.

View Sell Sheet

Arm Tables available:

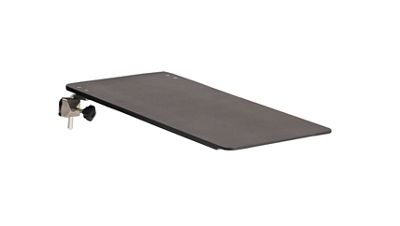

Carbon Lights Rectangular Table

Carbon Lights Rectangular Table

This radiolucent carbon fiber table has a frameless design to avoid perimeter interference during radiographic imaging. An optional leg, which attaches via two round .625" (1.6 cm) posts, allows surgeons to modify the table based on access and stability requirements. Clamps and pads are sold separately.

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL):15" x 30.375" (38 cm x 77 cm)
  • Product Weight: 5.8 lb (2.6 kg)

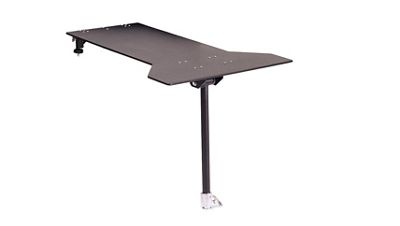

Carbon Lights Hourglass Arm Table

Carbon Lights Hourglass Arm Table

This full-sized, radiolucent carbon fiber arm table provides stability and is light enough for easy transport. The adjustable support leg delivers additional stability and can be tucked under for easy access. Integral mounting clamps allow vertical adjustment to align with pads on X-ray tops. The table includes an elbow rest. Pads are sold separately.

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL): 34" x 16", 26" at end (86 cm x 41 cm, 66 cm at end)
  • Product Weight: 9.2 lb (4.2 kg)
  • Height Range: 30-48" (76-122 cm)

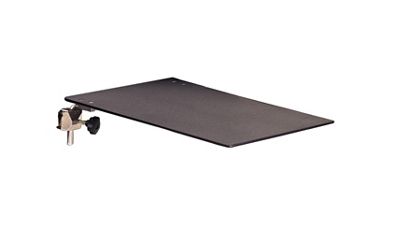

Carbon Lights Minor Procedures Arm Table

Carbon Lights Minor Procedures Arm Table

This small and ultra-lightweight carbon fiber arm table works well for procedures such as carpal tunnel releases and AV fistulas. The radiolucent table has two round .625" (1.6 cm) posts. Pad and clamp (required) are sold separately.

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL): 24" x 15" (61 cm x 38 cm)
  • Product Weight: 3.4 lb (1.5 kg)

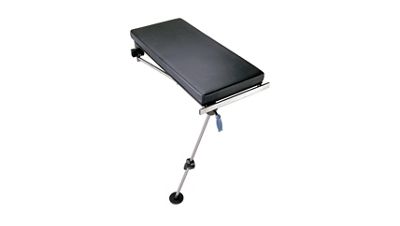

Basic Rectangular Arm Table

Basic Rectangular Arm Table

The radiolucent arm table permits improved access to the surgical site and attaches to a standard OR table. A telescoping leg can be easily moved in various positions to provide additional support. The table includes a 1.5" (3.8 cm) pad for use with 2" (5 cm) OR table pads and uses a phenolic board with a perimeter frame to allow for radiographic imaging.

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL): 14" x 32" (35.5 cm x 81 cm)
  • Product Weight: 8.8 lb (4 kg)
  • Easy Lock® Blade Clamp (2 required)

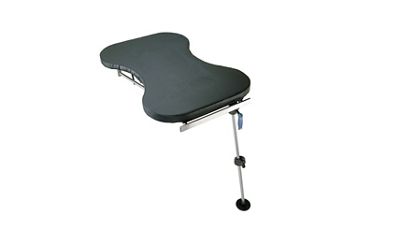

Basic Hourglass Arm Table

Basic Hourglass Arm Table

Featuring a telescoping leg that can be easily placed in various positions to provide added support, this arm table attaches to a standard OR table. The table offers an additional surface for the surgeon’s elbows or instrumentation. It includes a 1.5" (3.8 cm) pad for use with 2" (5 cm) OR table pads and uses a phenolic board with a perimeter frame to allow for radiographic imaging. Rail clamp or blade clamp are required (sold separately).

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL): 31.375" x 23" max, 14.75" min (79.7 x 58.4 cm max, 37.5 cm min)
  • Product Weight: 11 lb (5 kg)

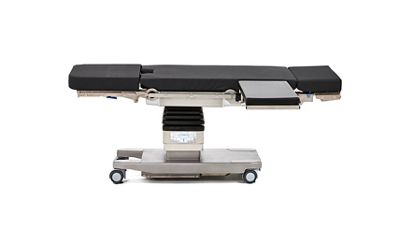

Basic Carpa Arm Table

Basic Carpa® Arm Table

Especially suited for carpal tunnel procedures, this radiolucent arm table has a legless design with a rigid self-bracing frame and a top that provides maximum access. The table includes an easy drop-in rail attachment and a 1.5" (3.8 cm) pad for use with 2" (5 cm) OR table pads.

  • Patient Weight Capacity: 400 lb (181 kg)
  • Dimensions (WxL): 14" x 26" (35.5 cm x 66 cm)
  • Product Weight: 7.4 lb (3.4 kg)
